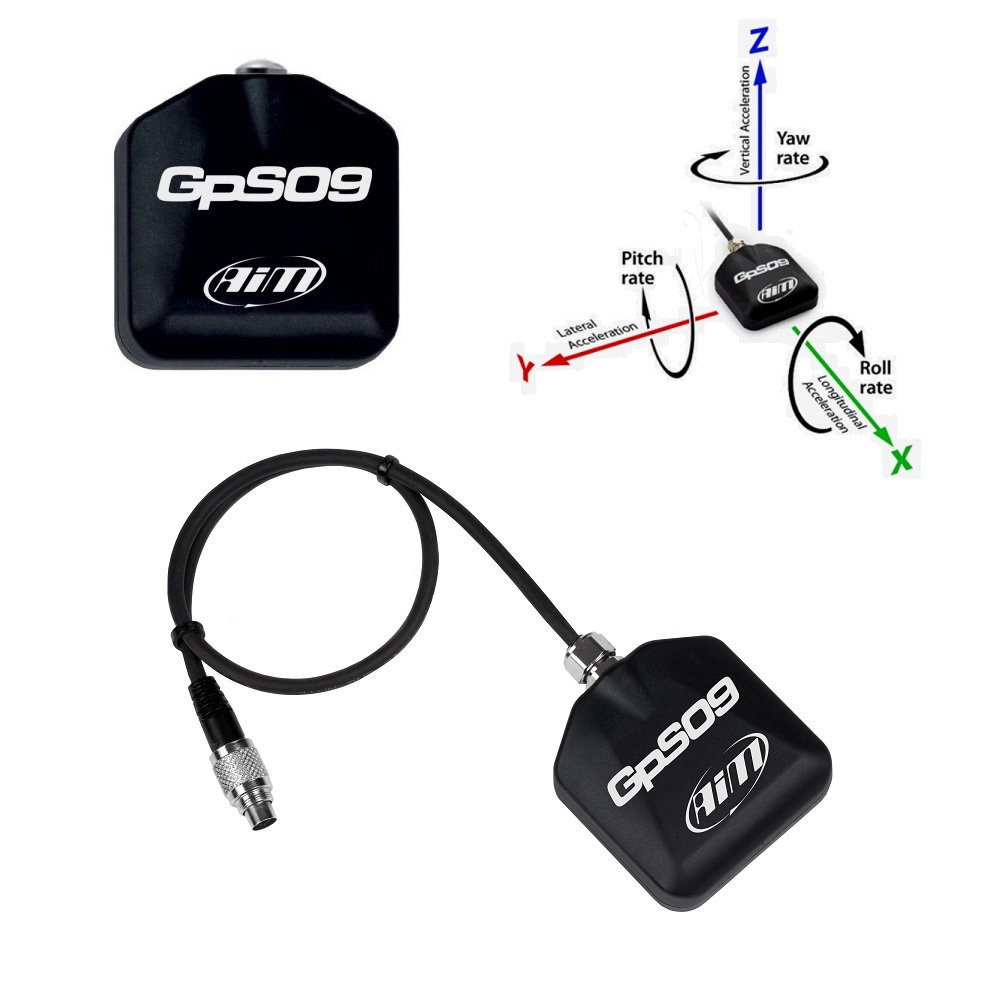

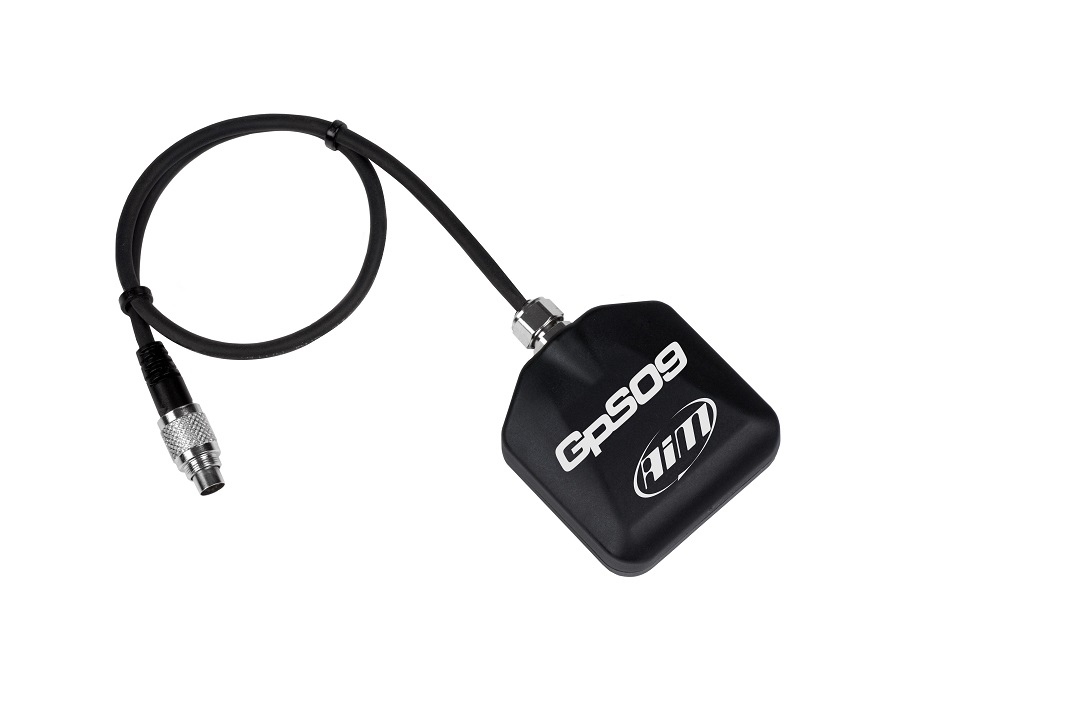

AIM GPS Module GPS09C OPEN + OPEN PRO IMU

GPS09c Open is a stand-alone device that can stream, in completely configurable messages, all the GPS data at 25 Hz.
It is proposed also in the Pro version that features also a 100 Hz 6 axis IMU.

All the qualities of GPS09 are now achievable for those who already have a data acquisition device.

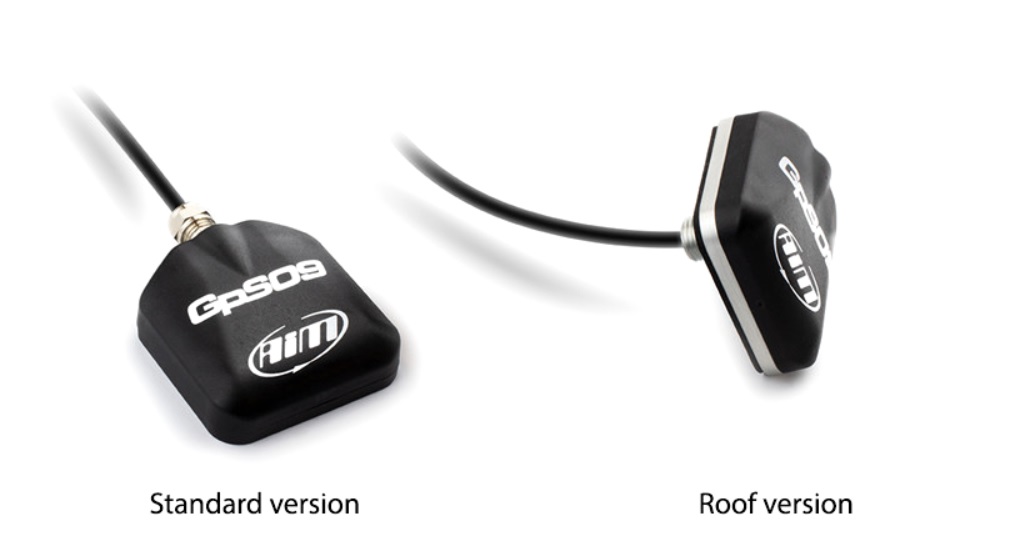

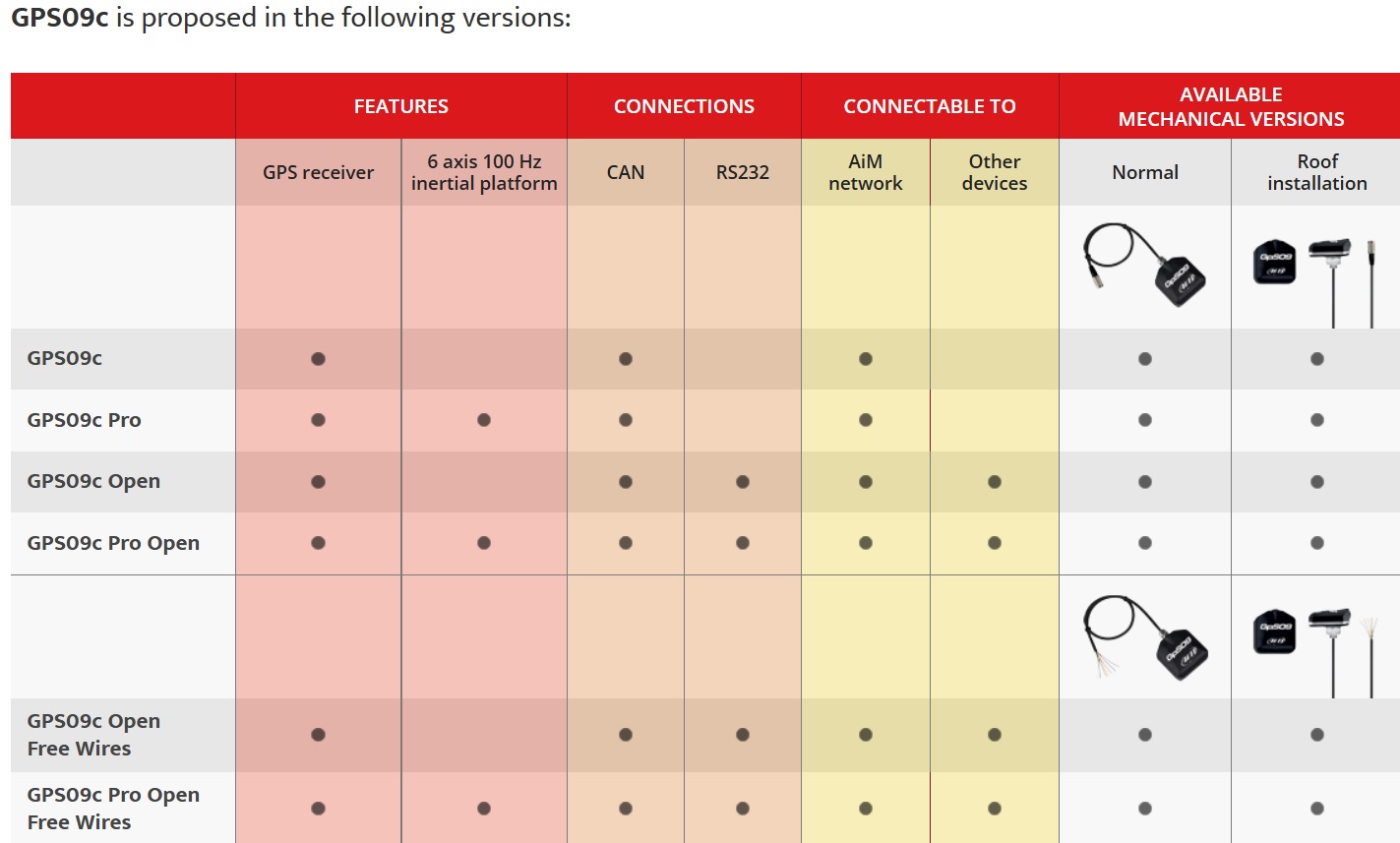

GPS09c Open and Pro Open are available in three versions: CAN (GPS measures stream up to 25Hz, programmable CAN bus
stream), Serial RS232 (NMEA standard messages stream up to 25Hz, programmable RS232 bus) and free wires.
GPS 25 Hz, external power 5-15 V. The Pro version features the inertial platform (100 Hz internal 3 axis ±5G accelerometer +
3 axis gyro + 3 axis magnetometer).

• GPS, GLONASS, Galileo, Beidou constellations support
• 30 second cold start TTFF
• 1 second hot start
• 0.5 m CEP accuracy
• Internal 25 mm antenna

• GPS, GLONASS, Galileo, Beidou constellations support
• 30 second cold start TTFF
• 1 second hot start
• 0.5 m CEP accuracy
• Internal 25 mm antenna
• IMU – 100 Hz 6 axis inertial platform system

• Altitude
• Latitude
• Longitude
• Sats number
• Pos Accuracy
• Speed Accuracy
• GPS Lateral acceleration
• GPS Linear acceleration
• GPS Heading
• GPS Yaw rate
• GPS Hour
• GPS Min
• GPS Sec
• GPS Millisec
• Year
• Month
• Day
• Week number
• ITOW
• Unix Time

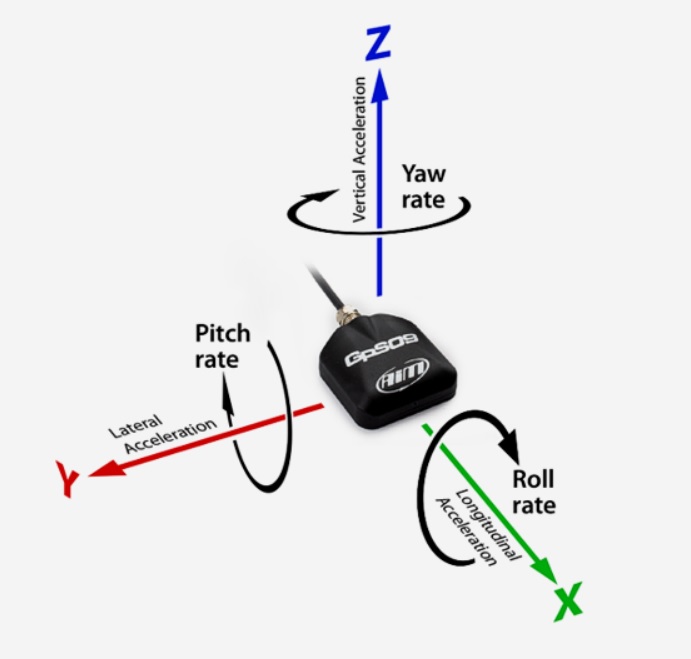

• Acceleration X
• Acceleration Y
• Acceleration Z
• Pitch rate
• Yaw rate
• Roll rate

• Baud rate
• ID
• DLC (1-8 bytes)
• Byte order (little endian, big endian)
• Messages frequency

Optionele USB programmeerkabel (benodigd!)
